Rubber bearing tool VAG


Item no.: 81110400
EAN: 4033592115360


Information about the product

Description

for the removal and installation of the rubber bearing on the console mule without removing the console (front axle 62 mm diameter)

Suitable for:

  • Audi A2 '00 - '05
  • Seat Cordoba 6L '02 - '09, Ibiza 6L '02 - '09
  • Škoda Fabia 6Y '99 - '08, Roomster 5J '06 - '08
  • VW Fox 5Z '05 - '12, Polo 9N '01 - '09

As well as for bearing bracket (removal necessary) to:

  • Audi A3 8P '03 - '13
  • Seat Altea 5P '04 - '15, Leon 1P '05 - '13, Toledo 5P '04 - '09
  • Škoda Octavia 1Z '04 - '13, Superb 3T '08 - '10, Yeti 5L '09 - '10
  • VW Caddy III 2K '03 - '10, Eos 1F '06 --, Golf V 1K '03 - '10, Golf VI 5K '08 - '13, Golf Plus 5M '05 - '14, Scirocco 13 '08 --, Jetta III 1K '05 - '10, Passat 3C '05 - '15, Touran 1T1 '03 - '10, Touran 1T3 '10 - '15, Tiguan 5N '07 - '16

Technical data

Produktqualität Premium

More images

Detailed images

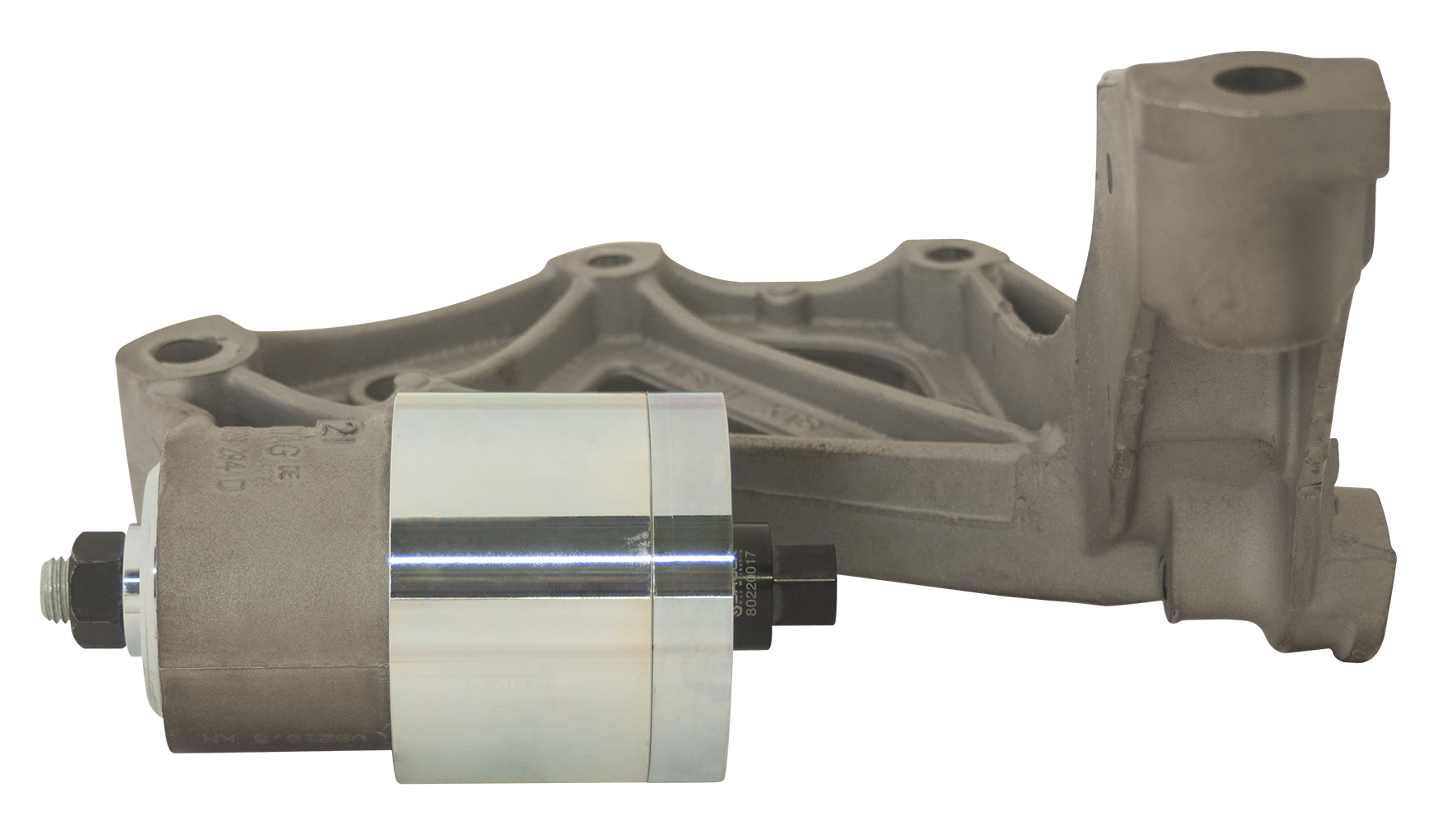

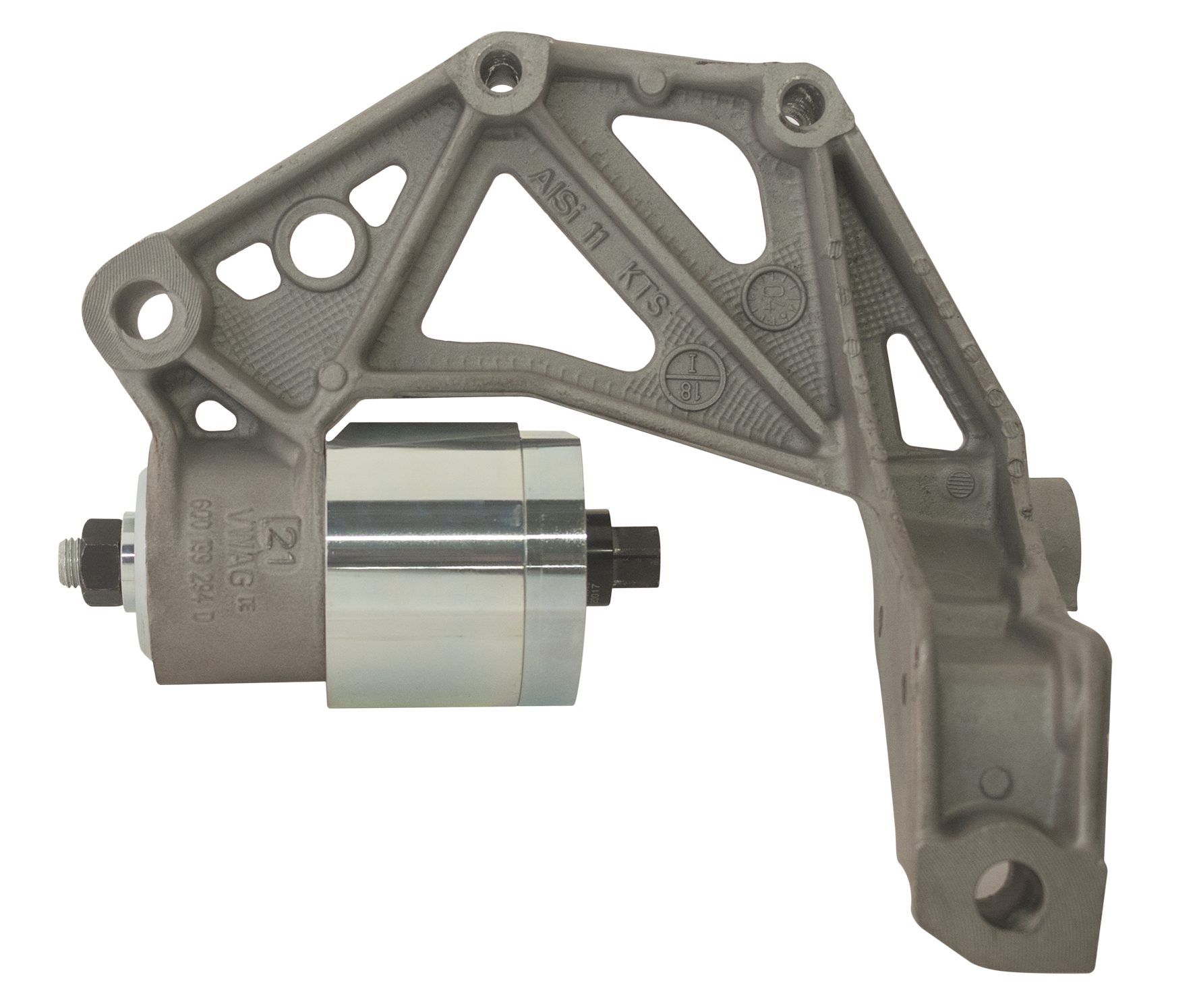

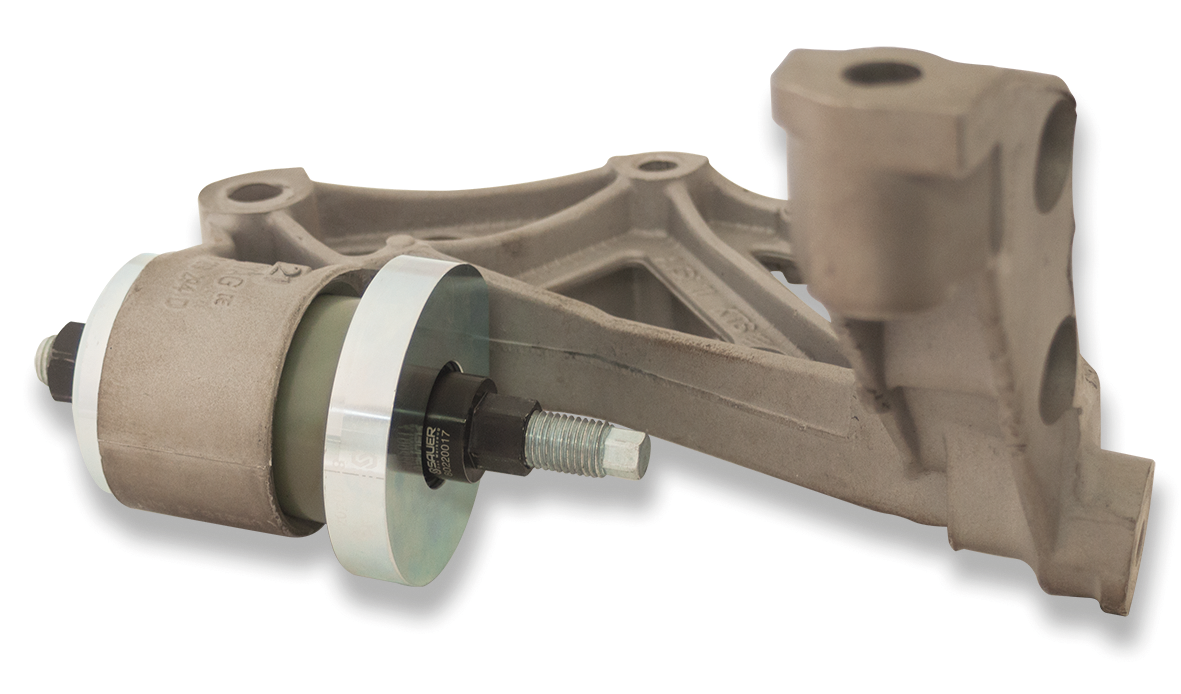

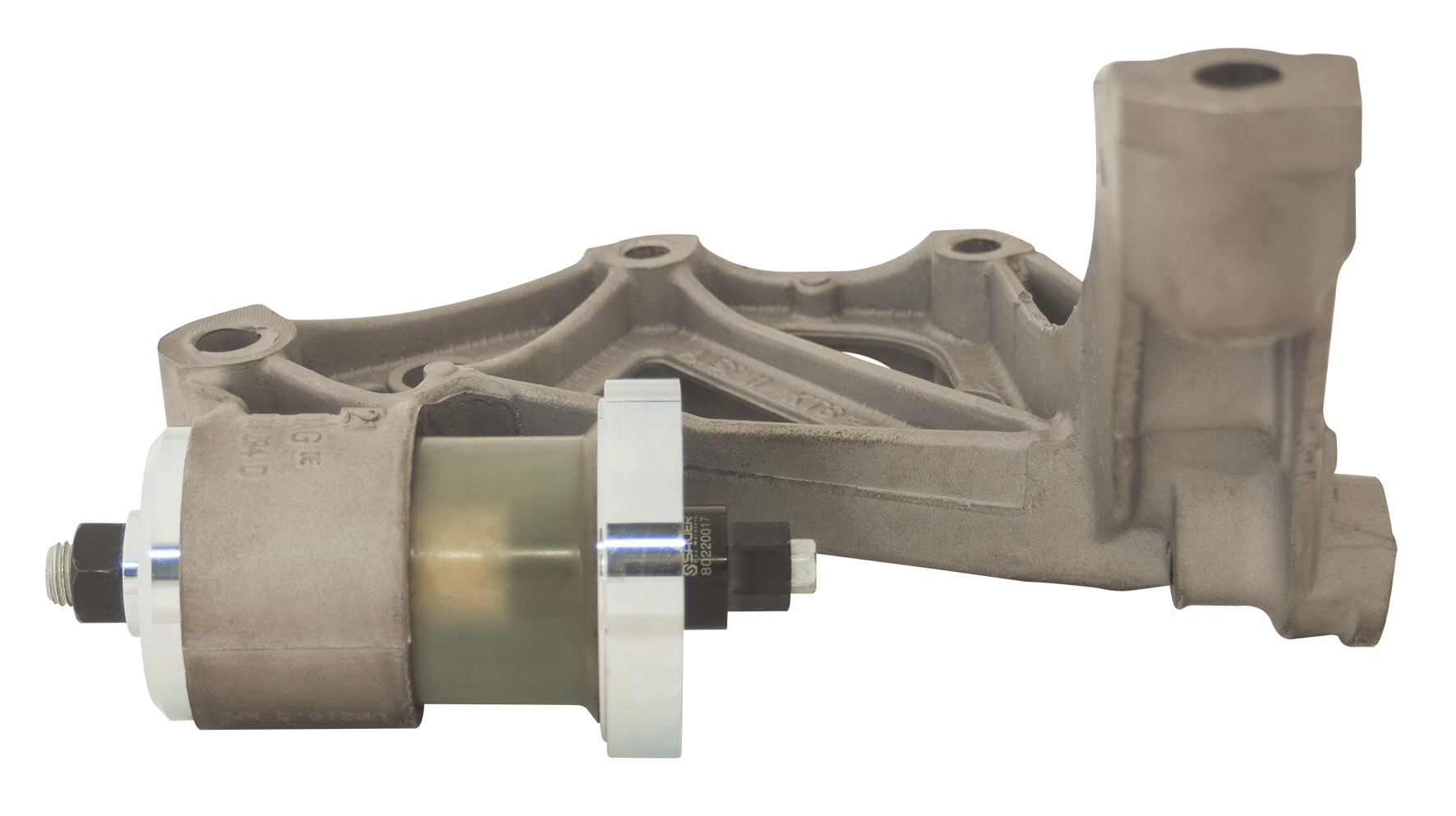

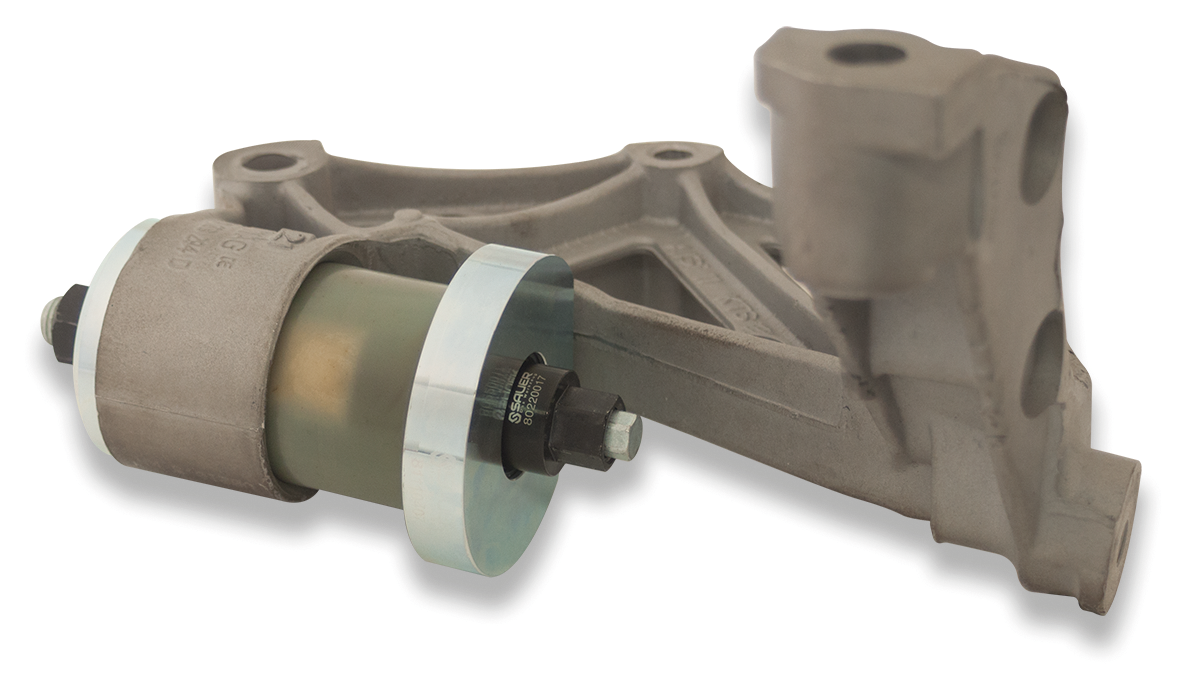

Application images

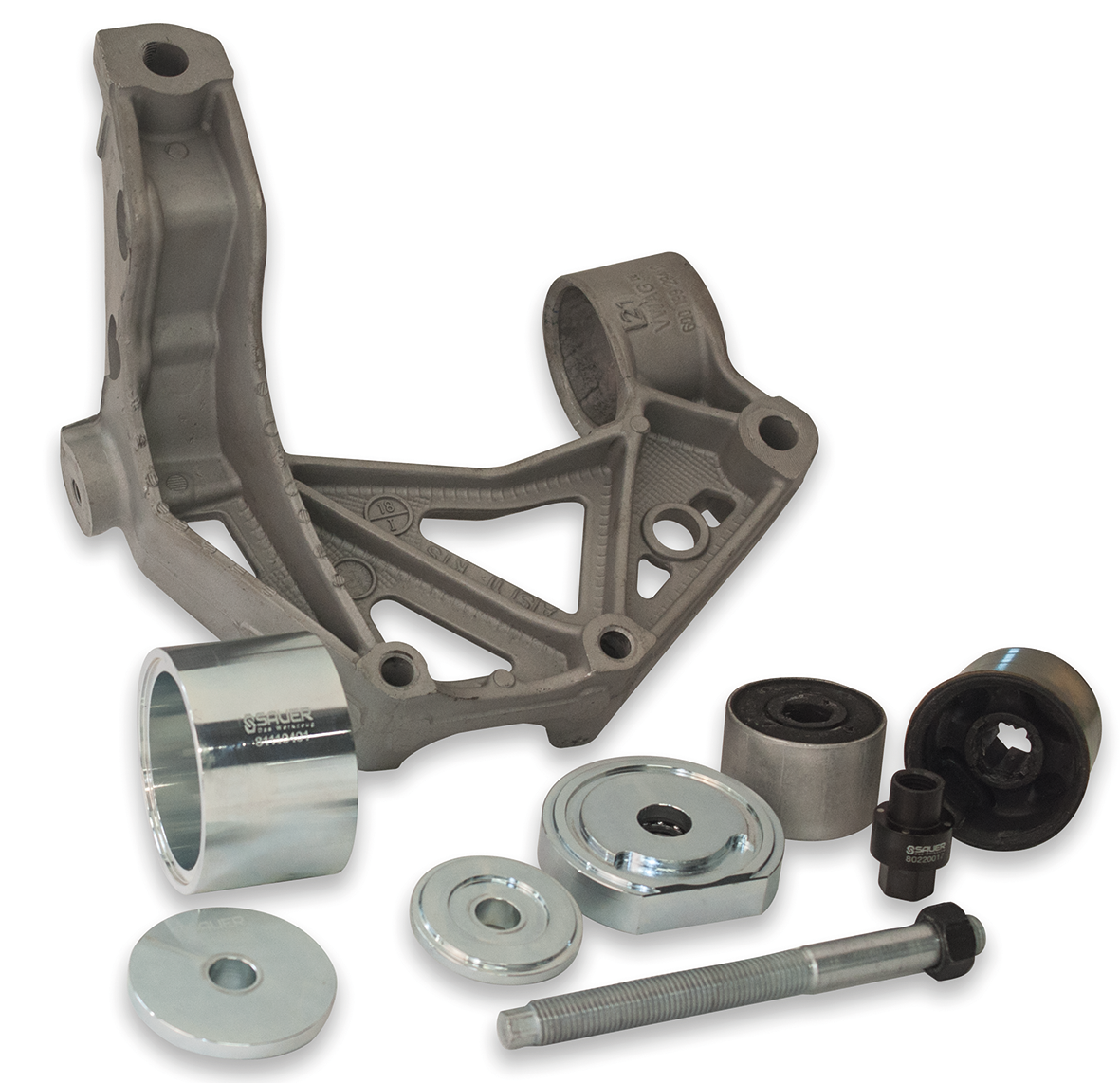

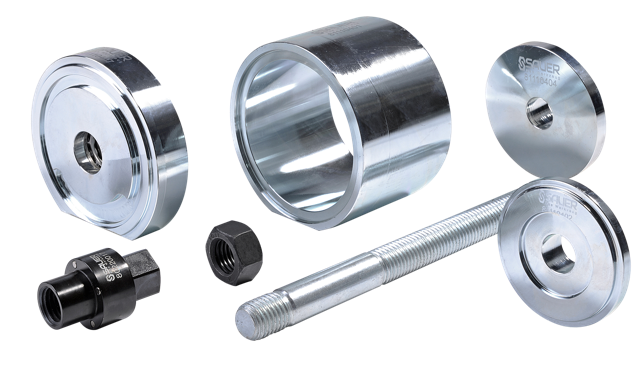

Scope of delivery

Item no. variant Name Quantity
81110401 - SAUER Pressure Sleeve ø 90 mm 1
81110402 - SAUER Pressure Piece ø 61.4 mm 1
81110404 - SAUER Pressure Piece ø 70 mm 1
81110407 - SAUER Pressure pad Ø 90 / 16,5 mm 1
81110502 - SAUER Tension Bolt M16 × 180 mm 1
80220017 - SAUER Nut M16 × 2.0 1

Accessories

Item no. variant Name
S1595-24 - Combination ratchet wrench, 24 mm

Spare and wear parts

Item no. variant Name
81110400-SCHAUM - Tool insert
81110410 - SAUER Ball Bearing 20 × 35 mm
