SAUER Tool kit for drive shafts, 42-piece

For the extraction of cardan shafts

Item no.: 80220400
EAN: 4033592119726

Information about the product

Description

This tool set is made to remove fixed or glued drive shafts. The trapezoidal thread on the enclosed pressure spindle is designed for the highest demands and is ideally suited for this purpose. Optionally working with the Sauer hydraulic cylinder is also possible.

Content:

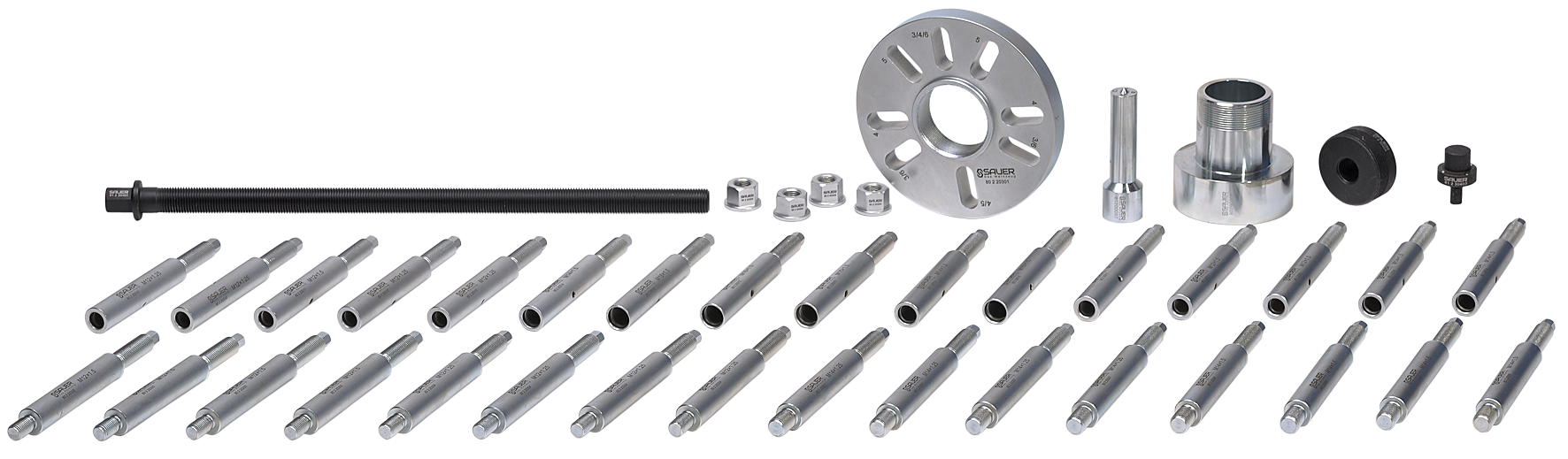

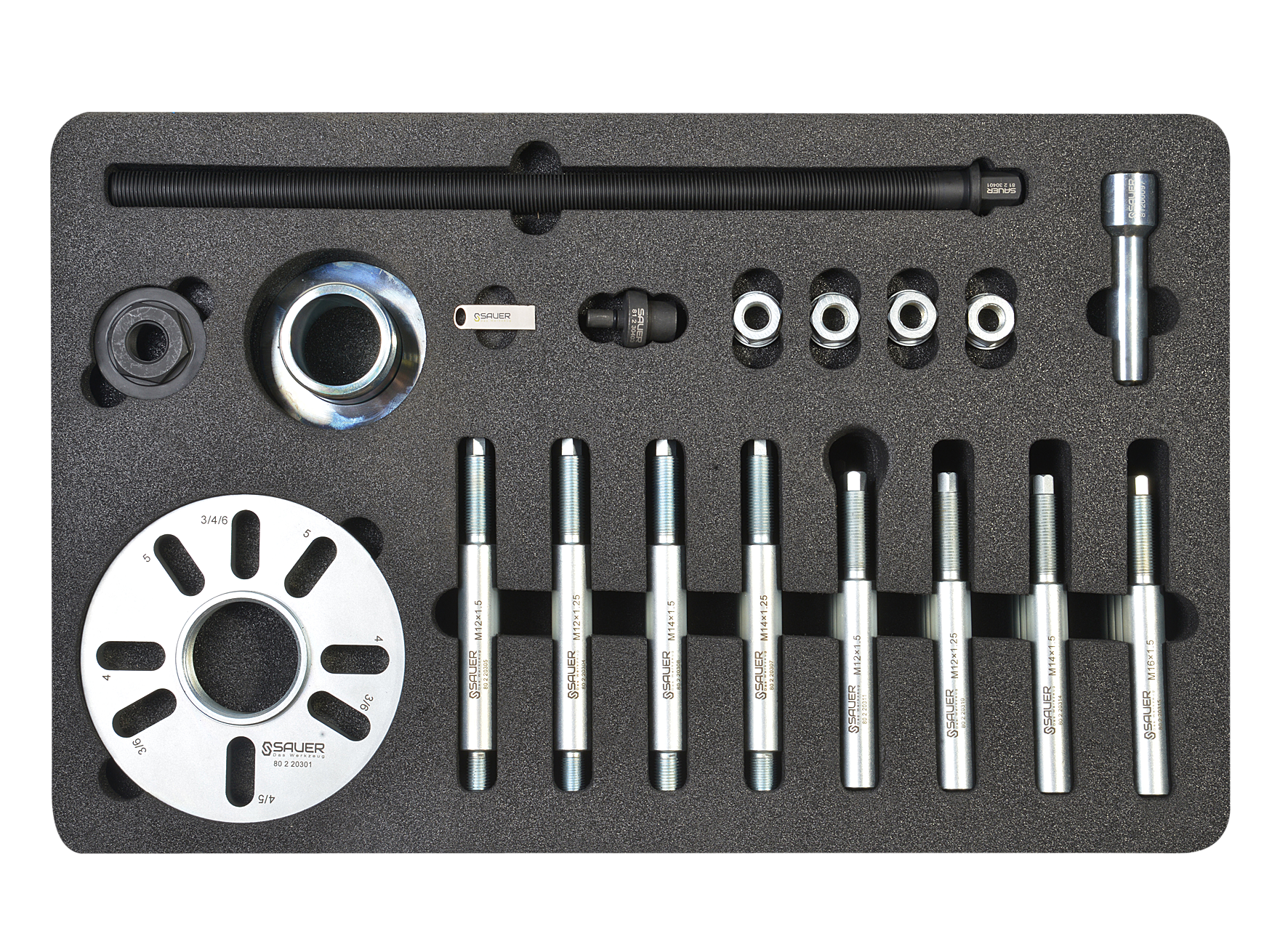

  • 4 nuts M14 with flange
  • Pressure spindle TR20 with adapter to 2-1/4’’ \- 14 UNS
  • Tension disc for bolt circles of 90 - 130 mm, internal thread 2-1/4'' \- 14 UNS
  • Tension bolts with external thread, 4pcs per size: M12x1,25 / M12x1,50 / M14x1,25 / M14x1,50
  • Tension bolts with internal thread, 4pcs per size: M12x1,25 / M12x1,50 / M14x1,50 / M16x1,50
  • Extension adapter for working with Sauer hydraulic cylinder

Technical data

Currently no technical data is available for this item. In case of questions please contact us.
Please contact us here.

More images

Detailed images

Application images

Scope of delivery

Item no. variant Name Quantity
81200097 - SAUER Pressure Mandrel, 100 mm 1
80220303 - SAUER hex Nut with flange 1
80220301 - SAUER Perforated Disc 1
80220304 - SAUER Tension Bolt with external thread 1
80220305 - SAUER Tension Bolt with external thread 1
80220307 - SAUER Tension Bolt with external thread 1
80220308 - SAUER Tension Bolt with external thread 1
80220310 - SAUER Tension Bolt with internal thread 1
80220311 - SAUER Tension Bolt with internal thread 1
80220314 - SAUER Tension Bolt with internal thread 1
80220315 - SAUER Tension Bolt with internal thread 1
81230401 - SAUER Pressure Spindle and Feed Shaft TR20 × 2.0 × 450 mm 1
81230404 - SAUER Adapter TR20×2.0 to 2 1/4" – 14 UNS 1
81230403 - SAUER adapter for pressure pieces 1
80290006 - SAUER Thread Adapter 1

Accessories

Item no. variant Name
81200098 - SAUER Pressure Mandrel, 25 mm
80220302 - SAUER Perforated Disc
80220306 - SAUER Tension Bolt with external thread
80220309 - SAUER Tension Bolt with external thread
80220312 - SAUER Tension Bolt with internal thread
80220313 - SAUER Tension Bolt with internal thread
80220316 - SAUER Tension Bolt with internal thread
80220033 - SAUER drive set, hydraulic, 13-piece

Spare and wear parts

Item no. variant Name
80220300-SCHAUM - Tool insert

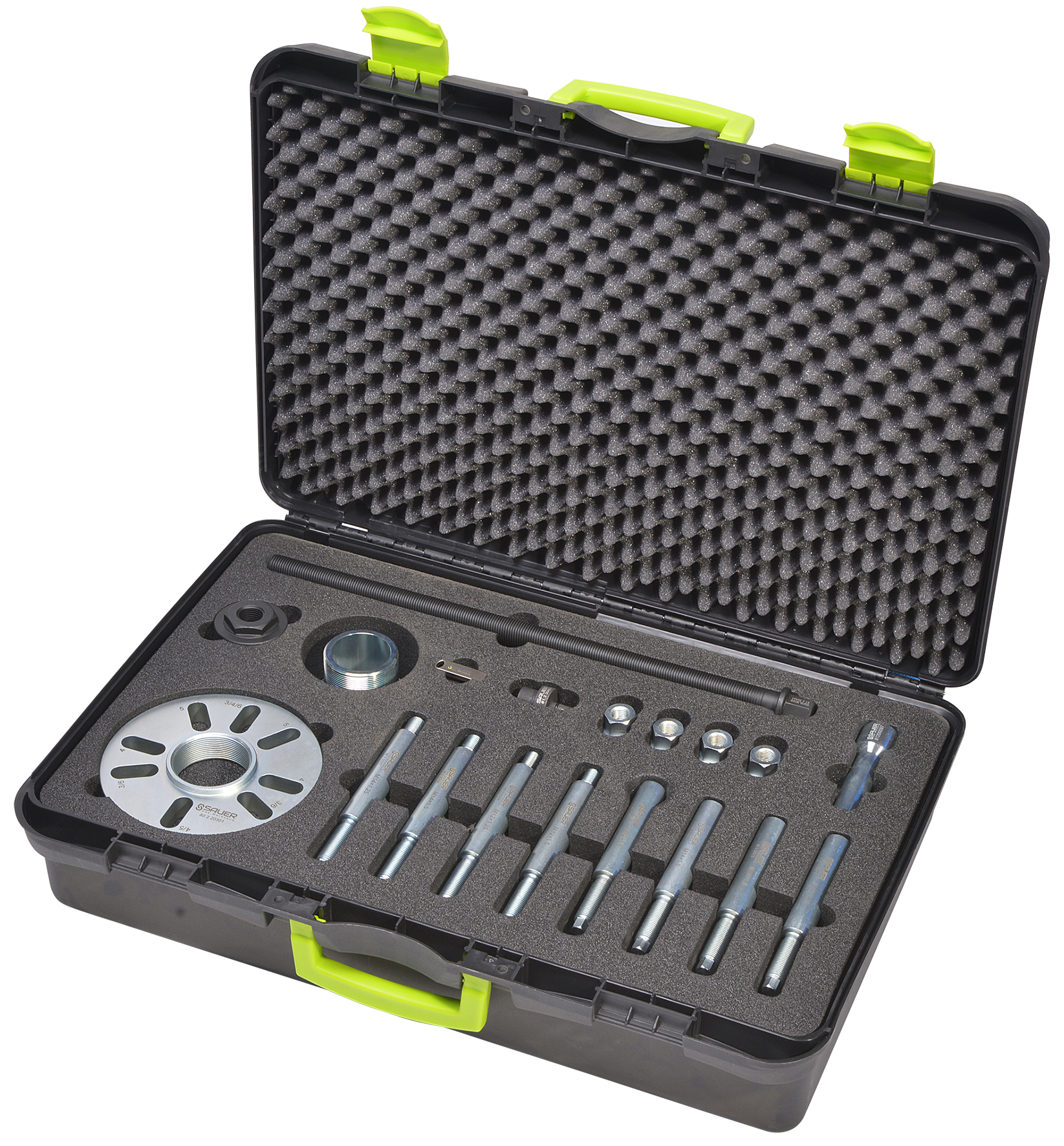

80290030 - SAUER Storage suitcase, empty
