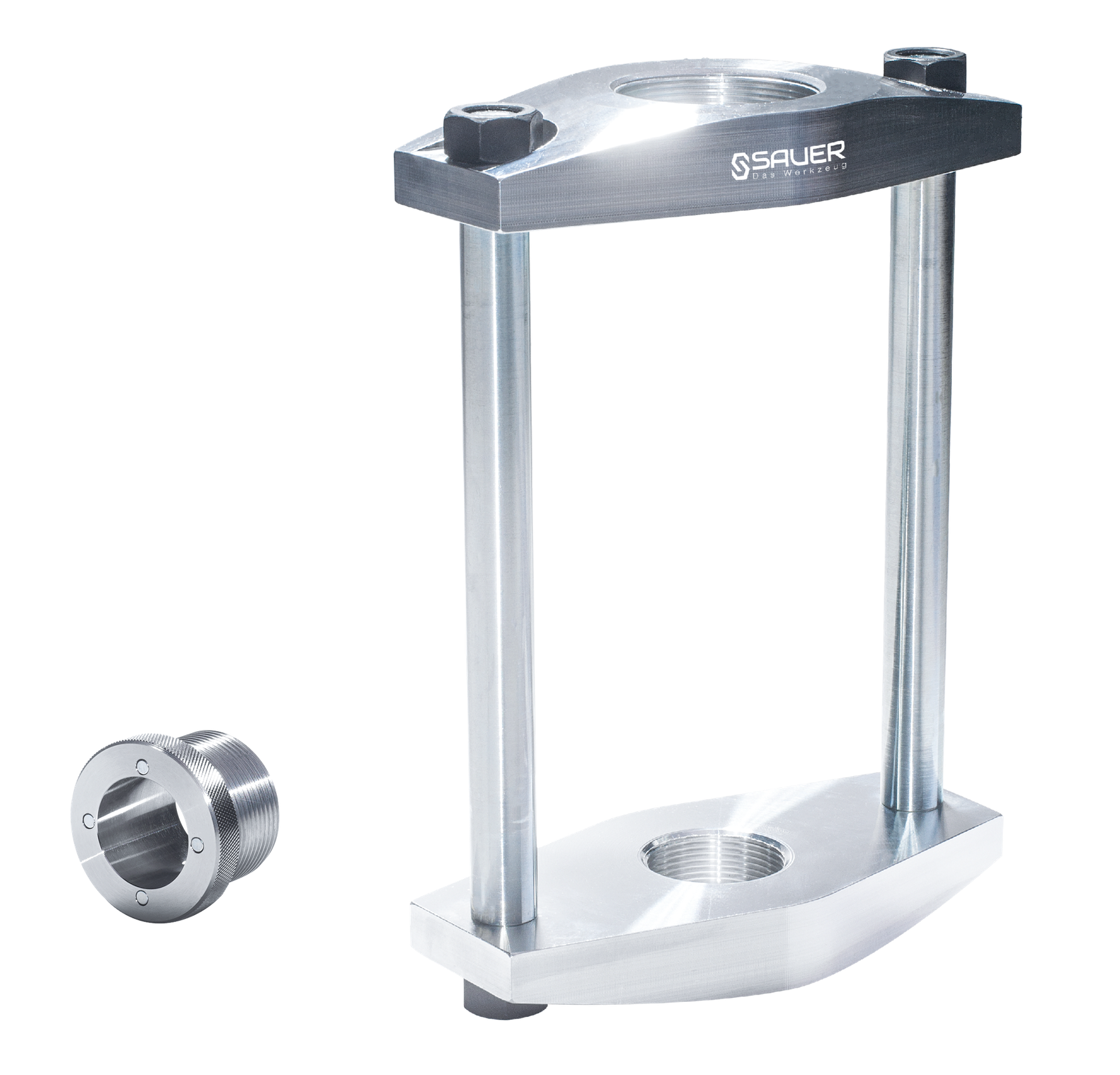

SAUER Press frame, closed design, 2-piece


Item no.: 80220047
EAN: 4033592112062


Information about the product

Description

Sturdy press frame in closed design made of high-strength tempered steel. The enclosed threaded sleeve is designed for pressure pieces with ø 30 mm mounts and equipped with the Sauer magnet system. The height can be easily adjusted using the threaded sleeve.

Description:

  • Internal width: 130 mm
  • Internal length: 300 mm
  • Socket thread 1: 2 1/4" - 14 UNS
  • Socket thread 2: M42 × 2.0
  • Max. load: 17 tonnes
  • Weight: 5.5 kg

Technical data

Product quality Premium

Scope of delivery

Item no. variant Name Quantity
80220036 - SAUER Threaded Sleeve 1
80220041 - SAUER Connector Rod Pair for Press Frame, 300 mm 1
80220045 - SAUER Press Bridge 2 1/4" – 14 UNS 1
80220044 - SAUER Press Bridge M42 × 2.0 1

Accessories

Item no. variant Name
80220040 - SAUER Connector Rod Pair for Press Frame, 200 mm
80220042 - SAUER Connector Rod Pair for Press Frame, 400 mm
80220034 - SAUER Press Bridge with Open Mount
80220035 - SAUER Adapter Ring
80220033 - SAUER drive set, hydraulic, 13-piece
81230400 - SAUER Drive Set for Manual Tensioning and Pressing

Spare and wear parts

Item no. variant Name
80220047-SCHAUM - Tool insert
