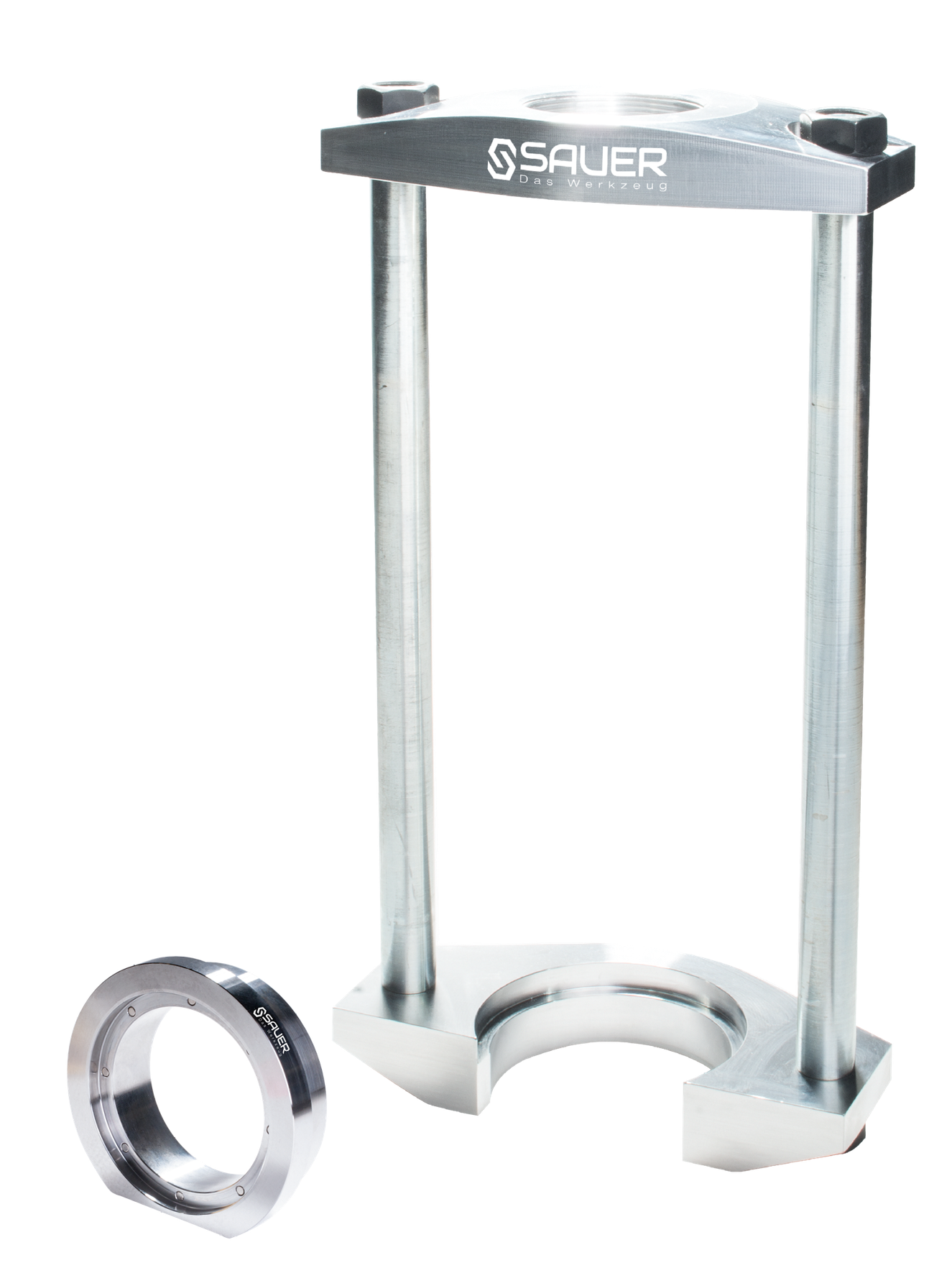

Sturdy press frame in an open design to accommodate pressure and support sleeve sets for vehicles. Both the frame and the adapter ring supplied are equipped with the Sauer magnetic system. Fast, maintenance-free holding of the pressure pieces is thereby guaranteed.
Description:
Internal width: 130 mm
Internal length: 300 mm
Socket thread 1: 2 1/4" – 14 UNS
Socket thread 2: Open socket with adapter ring
Max. load: 17 tonnes
Weight: 5.3 kg
max. Belastung [t] | 17.0 | |
Breite außen [mm] | 181.0 | |
Breite innen [mm] | 130.0 | |
Produktqualität | Premium |
Item no. | variant | Name | Quantity | |
---|---|---|---|---|
![]() |
80220035 | - | SAUER Adapter Ring | 1 |
![]() |
80220041 | - | SAUER Connector Rod Pair for Press Frame, 300 mm | 1 |
![]() |
80220045 | - | SAUER Press Bridge 2 1/4" – 14 UNS | 1 |
![]() |
80220034 | - | SAUER Press Bridge with Open Mount | 1 |
Item no. | variant | Name | |
---|---|---|---|
![]() |
80220040 | - | SAUER Connector Rod Pair for Press Frame, 200 mm |
![]() |
80220042 | - | SAUER Connector Rod Pair for Press Frame, 400 mm |
![]() |
80220044 | - | SAUER Press Bridge M42 × 2.0 |
![]() |
80220036 | - | SAUER Threaded Sleeve |
![]() |
80220033 | - | SAUER drive set, hydraulic, 13-piece |
![]() |
81230400 | - | SAUER Drive Set for Manual Tensioning and Pressing |
Item no. | variant | Name | |
---|---|---|---|
|
80220032-SCHAUM | - | Tool insert |
