Information about the product

• Description
• Technical data
• Scope of delivery
• Accessories

Description

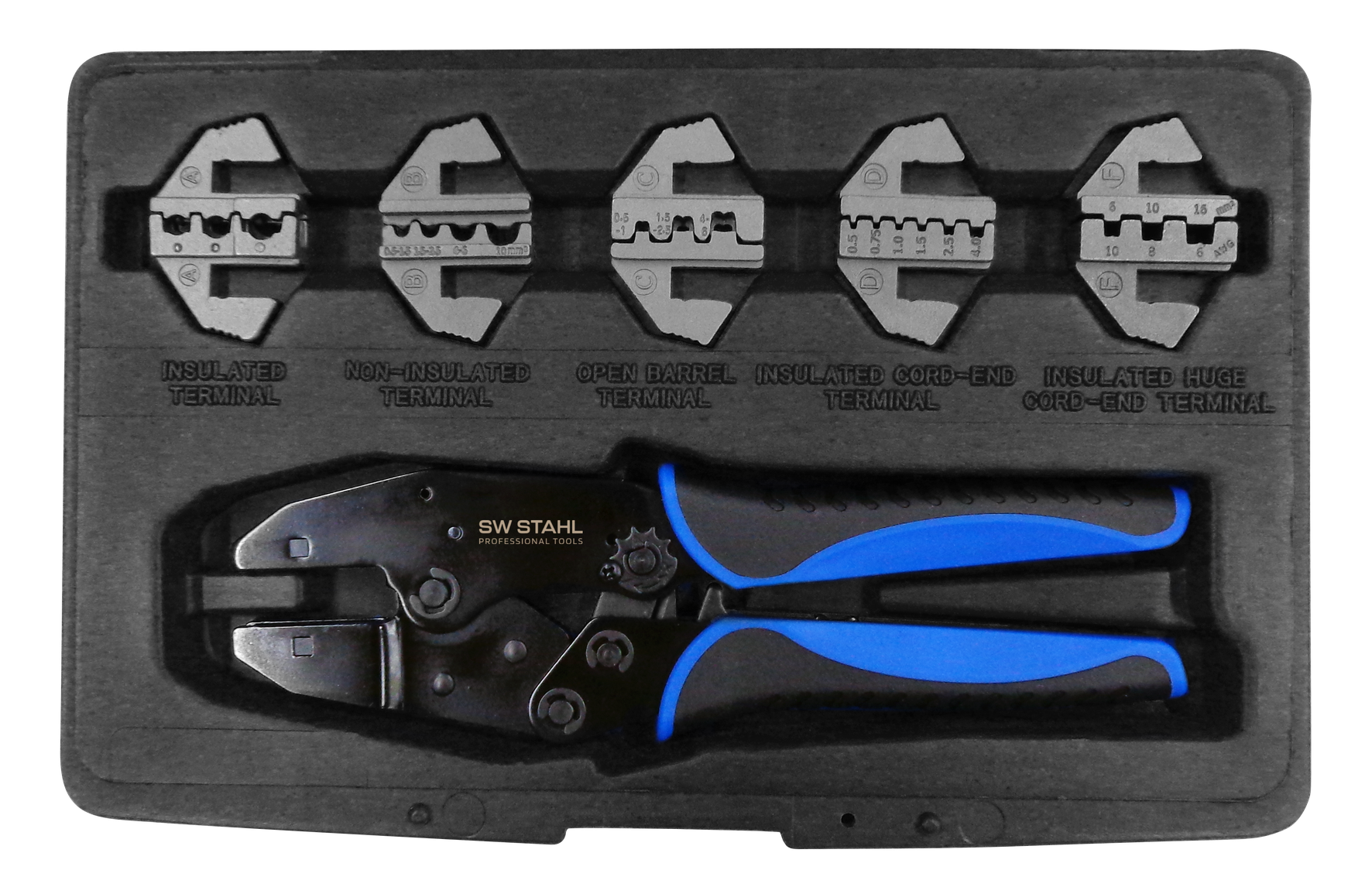

with replaceable mouthpieces, forced lock, 2-K insulated handle, in plastic box.

• Mouthpiece A: for insulated cable lugs from 0.5 - 6.0 mm² (red, blue, yellow)
• Mouthpiece B: for closed, non- insulated cable lugs from 0.5 - 10.0 mm2
• Mouthpiece C: for open, non-insulated cable lugs from 0.5 - 6.0 mm2, up to 6.3 mm width
• Mouthpiece D: for cable end sleeves with and without collar from 0.5 - 4.0 mm2
• Mouthpiece F: for cable end sleeves over 6 - 16 mm2

Technical data

Number of tools	6
Pliers characteristics	For Insulated Cable Connectors
Pliers characteristics	For Uninsulated Cable Connection
Suitable for plug	Wire End Ferrule
Pliers characteristics	with Lever Gearing
Cable cross-section from [mm²]	0,5
Cable cross-section to [mm²]	10
Surface	Painted
Ausführung Griff	Schwere Griffschutzisolation
Tool handle material	Plastic
Ausführung Griff	2K-Kunststoff
Quality	Premium
Packaging	Plastic Cassette
Length [mm]	280
Width [mm]	190
Height [mm]	50
Weight [kg]	1.16400

Scope of delivery

	Item no.	variant	Name	Quantity
	42585L-A	-	Pair of spare cheeks A for 42585L	1
	42585L-B	-	Pair of spare cheeks B for 42585L	1
	42585L-C	-	Pair of spare cheeks C for 42585L	1
	42585L-D	-	Pair of spare cheeks D for 42585L	1
	42585L-F	-	Pair of spare cheeks F for 42585L	1

Accessories

	Item no.	variant	Name
	42585L-E	-	Pair of replacement jaws E
	42585L-H	-	Pair of spare cheeks F for 42585L
